Xiamen Sanideng Plastics Industry Co., Ltd. is one of the most reliable manufacturers and suppliers of pvc single union swing check valve in China. With abundant experience, we warmly welcome you to wholesale premium pvc single union swing check valve for sale here from our factory. Quality products and reasonable price are available.
1. Products Introduction
PVC Single Union Swing check valve is the action of allowing the flow of the medium itself to drive the valve flap to open and close. It is generally a valve that prevents the backflow of the medium, so it is also called a back-pressure valve, one-way valve, clapet non-return flap valve, etc. It is mainly used to prevent the backflow of the medium or the discharge of the medium in piping system. Usually, this kind of valve works automatically. Under the pressure of the medium flowing in one direction, the valve flap can automatically open. If the medium flows in the wrong way, the pressure and the valve flap act on the valve seat, which can cut off the flow. Sanking's PVC single union Swing Check valve is flap type, even if there is only a drop of water/fluid backflow, the valve will be closed. Compared with the hemispherical structure, there is no any reversed pressure requirement, more safety and reliability. It can be installed horizontally or vertically.
Sanking team believe that in the industrial pipeline system, the industrial pipeline as the carrier of his blood flow, must ensure its stability and ease of operation. PVC single union swing check valve is providing with union in one side, and its flap is made by PVDF as standard. It further ensures that the valves are easy to operate and long-term life, bring the best experience and the greatest guarantee to the end-users.
2. Main Features
a. Size:1/2" -2"
b. Flap type- No reversed pressure requirement to prevent the backflow. More safety and reliability.
c. Installation can be installed horizontally or vertically
d. Long service life- Nano molded material
e. Good performance on impact resistance, weather resistance and aging resistance
f. 100% Leak free inspection
g. CE certificate
3. Parameter
S/N | Material | SIZE | Operating Temperature © | |||||
DN (MM) | 15 | 20 | 25 | 32 | 40 | 50 | ||
Size (Inch) | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | ||
DIN | PVC-U | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 55 ℃ |
PVC-C | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 95 ℃ | |
ANSI | PVC-U | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 55 ℃ |
PVC-C | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 95 ℃ | |
JIS | PVC-U | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 55 ℃ |
PVC-C | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 95 ℃ | |
PT | PVC-U | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 55 ℃ |
PVC-C | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 95 ℃ | |
NPT | PVC-U | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 55 ℃ |
PVC-C | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 95 ℃ | |
BSPF | PVC-U | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 55 ℃ |
PVC-C | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 95 ℃ | |
Operating torque (N.M) | 2.00 | 2.50 | 4.00 | 5.00 | 7.50 | 1.00 | ∕ | |
Working Pressure (psi) | 150 | 150 | 150 | 150 | 150 | 150 | ||
Note:֍ stands for the standard products @ stands for on request, if any requirements, please double check with Sanking team. N/A stands for not available | ||||||||

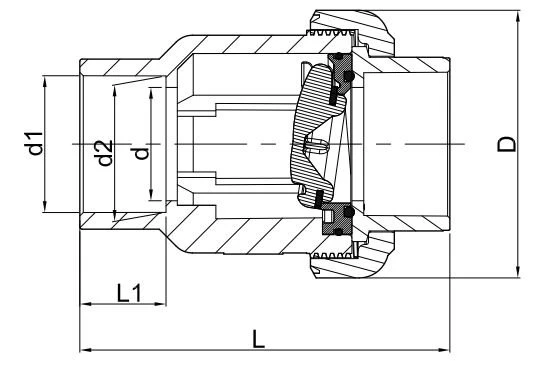

4. Dimension (Unit:mm)
SIZE | d | d1 | d2 | D | L | L1 | L2 | |||||||
ANSI | DIN | JIS | CNS | ANSI | DIN | JIS | CNS | |||||||
1/2" | (15) | 15 | 21.54 | 20.30 | 22.40 | 22.40 | 21.23 | 20.10 | 21.73 | 21.90 | 54.00 | 87.60 | 22.30 | 22.30 |
3/4" | (20) | 20 | 26.87 | 25.30 | 26.45 | 26.40 | 26.57 | 25.10 | 25.69 | 25.90 | 63.00 | 103.50 | 25.50 | 25.50 |
1" | (25) | 25 | 33.65 | 32.30 | 32.55 | 34.50 | 33.27 | 32.10 | 31.70 | 33.90 | 73.50 | 120.60 | 28.60 | 28.60 |
1-1/4" | (32) | 32 | 42.42 | 40.30 | 38.60 | 42.50 | 42.04 | 40.10 | 37.65 | 41.90 | 84.50 | 135.00 | 32.00 | 32.00 |
1-1/2" | (40) | 40 | 48.56 | 50.30 | 48.70 | 48.60 | 48.11 | 50.10 | 47.74 | 47.90 | 98.00 | 144.00 | 35.00 | 35.00 |
2" | (50) | 50 | 60.63 | 63.30 | 60.80 | 60.60 | 60.17 | 63.10 | 59.78 | 59.90 | 119.00 | 163.00 | 38.00 | 38.00 |
5. Application
The PVC Single union swing check valves are widely used in: electrical, paper, boiler, pharmaceutical, mining, chemical, machinery and equipment pipelines, electronic industry, urban construction and other fields.
6. Our Advantage
1) Innovation design
2) 100% pure high-grade materials
3) Excellent Workmanship
4) Size: various sizes available
5) Self-owned brand "SANKING"
6) Accept customized request
7) Exquisite packing
8) Competitive factory price
9) High quality
10) Excellent service
11) Reliable plastic valves, plastic fittings
7. Certificate
8. Company Profile
SANKING has specialized in its core field of PVC,CPVC,PPH and PVDF Industrial Piping Systems since 1976. The facility is qualified by ISO 9001:2015, most of our products obtained the CE safety certification, TSG certification, NSF certification and various invent patents. At our most fundamental level, our goal is the continued evolution of the SANKING brand and delivering the results of a sustained growth to our distribution channels, supply and service partners, employees and investors. Welcome to be our distributor or equipment user, we will definitely provide you with more value-added services.
9. FAQ
Q1: Are you a manufacturer or a trading company?
A: We are professional manufacturer, specialized in thermoplastic valves and fittings for more than 45 years.
Q2: Can we visit your factory before placing orders?
A: Yes, sure. Welcome to visit our factory at any time.
Q3: Do you provide samples? Is it free?
A: Yes, we could offer the sample with favorable price.
Q4: What are your payment terms?
A: T/T in advance or L/C at welcome are welcome!
Q5: Is there any MOQ for your products?
A: Most of items are in stock, no MOQ requirements.
Q6: How long is your delivery time?
A: 2-3 days for the conventional product in stock, otherwise it is 20-30 days after order confirmed. Urgent order can be negotiated.
