Semiconductor High-Purity Piping
SANKING Semiconductor Solution
High-Purity Piping Configured by Line Function and Working Condition
A semiconductor piping system is not selected by material name alone. One position may need a PVDF true union ball valve for maintenance isolation, another may need a PVDF diaphragm valve for sensitive chemical shutoff, and an automated point may need pneumatic, electric, or modulating control.
SANKING helps fab facility teams, wet process equipment builders, high-purity system integrators, and equipment OEMs review PVDF valves, fittings, pipes, seals, and actuated control products for UPW support, electronic chemical transfer, wet process utility piping, chemical dosing skids, and sensitive media applications.
Application Fit
Where This Solution Is Used
This page is for project teams that need to decide how plastic valves, fittings, pipes, seals, and actuators should be configured in semiconductor-related piping. The main question is not only "which PVDF product," but where each product sits in the system and what risk it is meant to reduce.
UPW and High-Purity Support Lines
Used in equipment utility branches, controlled piping sections, isolation points, and maintenance positions. Material stability, seal compatibility, connection standard, cleanliness expectation, and future valve removal all need to be checked.
Electronic Chemical and Wet Process Equipment
Used around chemical cabinet outlets, day tank transfer lines, wet bench inlets, dosing skids, bypass sections, pump discharge lines, and automated shutoff points. Actuator height, union nut clearance, cable or air tube routing, and hand space for maintenance should be reviewed before the product list is locked.
System Integrators and Project Procurement
Used when buyers need one coordinated review for valves, fittings, pipes, seals, actuators, drawings, certificates, packing notes, source verification, delivery timing, and replacement records. For sensitive projects, a product photo and a low price are not enough for approval.
Risk Review
What Can Go Wrong If the Product Is Selected Too Quickly
Many piping problems do not appear during quotation. They appear later during installation, tool connection, commissioning, maintenance, or replacement. For sensitive media and high-purity support lines, the cost of a wrong selection is usually higher than the price difference between two valve configurations.
Material mismatch PVDF, PPH, CPVC, Clear PVC, and Clean PVC should not be approved by material name alone. Medium, concentration, temperature, and pressure decide the material direction.
Seal mismatch A suitable valve body does not guarantee a suitable seal. The seal needs to be checked against chemical service, temperature, cleaning method, and expected replacement interval.
Wrong valve structure Ball valves, diaphragm valves, check valves, strainers, and actuated valves do different jobs. A shutoff valve should not be used as a shortcut for a control valve or a cleaner isolation point.
Installation conflict Wrong end connection, tight actuator space, poor hand clearance, or missing pipe support can delay installation even when the valve material is correct.
Document mismatch A certificate, drawing, test record, or datasheet should match the exact product series, material, size, pressure class, connection, seal, actuator, and order scope.
Input Parameters
What Must Be Confirmed Before Product Selection
A useful high-purity piping review starts with line data, not a product code alone. These inputs decide the material, valve structure, seal, connection, actuator, document level, packing notes, lead time, and replacement plan.
System position
UPW support, chemical feed, wet process equipment, dosing skid, bypass, drain, pump outlet, chemical cabinet outlet, instrument protection, or maintenance isolation point. This decides whether the line needs a ball valve, diaphragm valve, check valve, strainer, fitting package, or actuator.
Medium, concentration, temperature, and pressure
These details decide PVDF, PPH, CPVC, Clear PVC, Clean PVC, and seal compatibility. Descriptions such as "acid," "chemical," or "solvent" are not enough for final selection.
Cleanliness expectation and documents
Cleanliness expectation affects material direction, packing requirement, handling notes, label information, certificate scope, inspection records, and whether extra project review is needed before shipment.
Operation method and installation space
A low-frequency maintenance valve can stay simple. A wet process sequencing valve may need pneumatic actuation. Remote utility control may need electric actuation. Flow adjustment needs a modulating option, not a basic ON/OFF valve.
Recommended Configuration
Choose Products by Line Position
The same semiconductor utility system may need different valve structures in different positions. Each product below has a job. The recheck notes are as important as the product recommendation.
Equipment isolation and branch shutoff
PVDF True Union Ball Valves fit equipment inlet and outlet positions, branch lines, and maintenance isolation points where future removal matters. Recheck this choice when the line needs precise flow control, very low dead space, or a cleaner shutoff structure.
Sensitive chemical shutoff
PVDF Diaphragm Valves are considered for sensitive chemical shutoff, selected wet process positions, and lines where valve cavity design needs closer review. Recheck if the position is only a low-risk maintenance isolation point and the project is under cost or lead-time pressure.
Chemical feed, bypass, and dosing support
PVDF Ball Valves work for shutoff, bypass, dosing support, and equipment connection points after medium and seal review. Recheck if the line needs proportional control, frequent automation, or cleaner media isolation.
Pump discharge and backflow protection
Check Valves are reviewed where the system needs backflow protection around pumps, dosing lines, or transfer sections. Recheck the structure if the liquid contains particles, crystals, or sediment.
Equipment protection, not every high-purity main line
Y-Strainers may fit selected protection positions before pumps, valves, or instruments. They should not be placed into every high-purity main line by default. Cleanliness expectation, particle-control logic, and maintenance method should be reviewed first.
Automated shutoff and equipment sequence
Pneumatic or electric actuated PVDF valve assemblies are reviewed for remote operation, wet process sequence, chemical module control, or equipment interlock. Recheck actuator enclosure, signal, voltage, air supply, corrosion exposure, humidity, and manual override before approval.
Application Reference
UPVC Piping Components in an Ultra-Pure Water System
TPK Process Ultra-Pure Water System

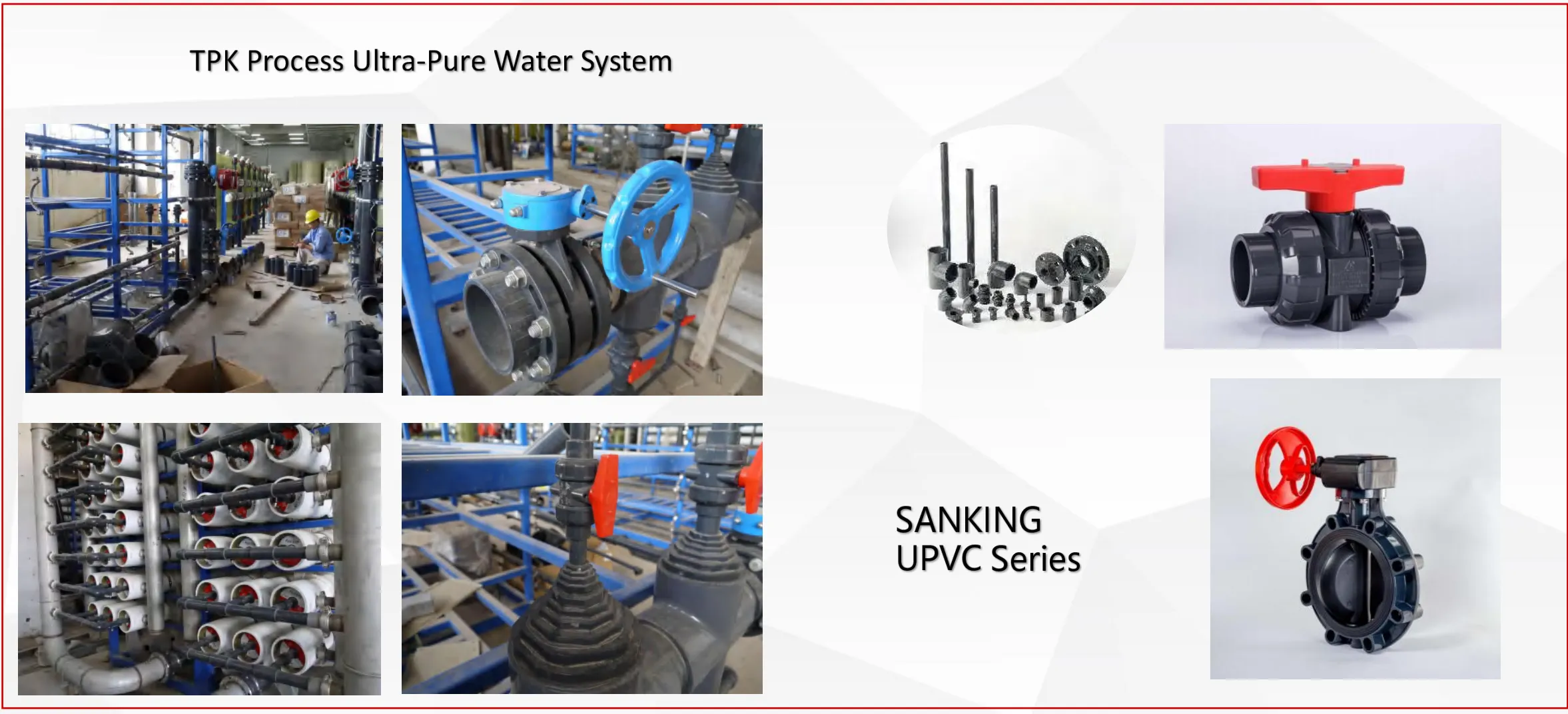

This application reference shows SANKING UPVC-series piping components used in an ultra-pure water system. The installed system includes plastic valves and piping components across the process layout.
A project reference confirms application experience; it does not replace engineering review for another plant. Water quality, chemicals, pressure, temperature, pipe standard, cleanliness level and documentation should still be confirmed for the new system.
Material and Trade-Offs
Balance Performance, Cost, Service Life, and Lead Time
PVDF is often the safer direction for demanding corrosive and sensitive chemical service, but using PVDF everywhere is not always the best project decision. Critical chemical and automated positions are usually reviewed more strictly than low-frequency maintenance isolation points.
PVDF package Better for sensitive chemical lines, demanding corrosive media, and higher-performance positions. It can increase cost or lead time, but it reduces material-risk pressure in critical sections.
PPH or CPVC option Considered for selected support, chemical utility, or wastewater lines where the medium and temperature fit the material direction and the project needs a cost-balanced package.
Manual valves Fit local isolation, maintenance, sampling, or low-frequency operation. They help control cost and delivery time but do not support remote operation or equipment sequence control.
Pneumatic or electric Used for frequent operation, wet process equipment sequencing, remote control, and tool integration. Space, signal, voltage, air supply, enclosure protection, and manual override need confirmation.
Modulating control Used for proportional opening, flow adjustment, or signal-based dosing control. It has higher configuration cost and needs more careful confirmation than simple ON/OFF operation.
Recheck Conditions
When This Solution Needs a Different Review
The safest answer for a semiconductor-related project is sometimes "recheck before buying." The following situations require a second review before product selection, quotation, or order confirmation.
01.The medium is only described as "acid," "chemical," "solvent," or "wastewater" without chemical name, concentration, temperature, and pressure.
02.The project requires a specific semiconductor clean standard, special cleaning, special packing, or third-party test, but the standard has not been provided.
03.The liquid contains particles, crystals, slurry, sediment, or precipitate that may affect valve seats, check valve movement, strainer maintenance, or service intervals.
04.The buyer needs precise flow regulation but only requests a basic ON/OFF valve without control signal, flow target, or process requirement.
05.The quotation, label, document, distributor, or product source is unclear. In this case, source verification should be completed before procurement approval.
For wet process equipment, the valve itself is not the only concern. Actuator height, union nut clearance, pipe support, maintenance hand space, cable or air tube routing, and replacement path should be checked before the final product list is confirmed.
Verification and Documents
How SANKING Supports Review Before Delivery
For semiconductor-related piping, verification usually moves from parameter review to model selection, drawings, sample or small-batch confirmation, inspection, packing, and document delivery. The exact scope depends on product type and project requirement.
Configuration review SANKING reviews material, valve structure, fittings, pipes, seals, actuator type, alternative options, and recheck conditions from the confirmed line data.
Drawing confirmation Dimensions, connection method, actuator direction, installation space, union clearance, pipe support, and maintenance access can be checked before order confirmation.
Sample or small batch Equipment builders and system integrators can use samples or small-batch orders to confirm fit, layout, actuator signal, installation sequence, and replacement method.
Inspection and files Product appearance, dimensions, manual operation, actuator function, pressure or sealing checks, label information, datasheets, drawings, certificates, inspection records, and packing notes can be reviewed when the project requires them.
Evidence Buyers Can Check
Do Not Approve by Photo or Price Alone
For semiconductor-related procurement, buyers can review product size, pressure rating, temperature range, connection standard, seal configuration, actuator option, drawing, inspection information, certificate scope, packing label, and official source before final approval.
Product references: PVDF True Union Ball Valve, PVDF Ball Valves, PVDF Diaphragm Valves, and PVDF Fittings.
Manufacturing and inspection: Review Manufacturing and Quality for production, inspection, quality control, and factory support information.
Documents and certificates: Use Certifications and Compliance to confirm which documents apply to the selected product, market, and project scope.
Official source verification: Use SANKING Product Source Verification when a quotation, package label, document, distributor, or product source is unclear.
Related Products and Knowledge
Review Product Categories and Selection Guides
Automation guide: PVDF Actuated Ball Valves for Corrosive and Sensitive Media.
Material comparison: PVC, CPVC, PPH, or PVDF Ball Valve Selection Matrix.
Related solution: Chemical Process Piping for corrosive process and chemical dosing lines outside the high-purity semiconductor scope.
FAQ
Questions About Semiconductor High-Purity Piping
Is PVDF always the right material for semiconductor high-purity piping?
No. PVDF is a strong direction for many corrosive and sensitive media applications, but the final choice depends on medium, concentration, temperature, pressure, connection standard, seal, cleanliness expectation, and document requirement.
When should I choose a PVDF true union ball valve?
Choose it for isolation, bypass, branch lines, equipment inlet and outlet points, and maintenance positions where valve removal or future replacement should be planned. Recheck the choice if the line needs precise control or cleaner shutoff structure.
When is a PVDF diaphragm valve a better direction?
A PVDF diaphragm valve is a better direction when the line needs clean shutoff, chemical isolation, or closer review of valve cavity and media contact. It may cost more and needs more detailed model confirmation than a basic ball valve.
What should I send for a high-purity piping quotation?
Send the system position, medium name, concentration, temperature, pressure, pipe size, connection standard, cleanliness expectation, seal requirement, control method, operation frequency, installation space, packing request, quantity, destination country, document requirement, and delivery schedule. Drawings or valve lists are helpful for equipment and project orders.
Start a High-Purity Piping Review
Send Your Line Position, Medium, and Product Requirement
Share the working condition, required product list, drawings, current product photos, and document requirement. SANKING will help review the material direction, PVDF valve and piping combination, actuator option, verification process, and project support information.
