Xiamen Sanideng Plastics Industry Co., Ltd. is one of the most reliable manufacturers and suppliers of cpvc true union swing check valve in China. With abundant experience, we warmly welcome you to wholesale premium cpvc true union swing check valve for sale here from our factory. Quality products and reasonable price are available.
1. Products Introduction
The cpvc true union swing check valve, also known as a non-return valve or one-way valve, is a valve that only allows fluid (liquid or gas) to flow in one direction. The cpvc true union valve is a two-port valve, which means that it has two openings in its valve body, one for fluid to enter and the other for fluid to leave. The CPVC true union swing Check Valves can be an integral piece of hardware for regulating water flow - especially when it comes to preventing water from going in the wrong direction.
The size can be provided from 1/2" to 2". ANSI/DIN/JS are welcome!
2. Main Features
a. Flap type- No pressure requirement to prevent the backflow. More safety and reliability.
b. Connection- True union. Ease of the operation when the pipeline system needs to be repaired or maintained.
c. Installation can be installed horizontally or vertically
d. Long service life- Nano molded material
e. Good performance on impact resistance, weather resistance and aging resistance
f. 100% Leak free inspection
g. CE certificate
3. Parameter
S/N | Material | SIZE | Operating Temperature © | |||||
DN (MM) | 15 | 20 | 25 | 32 | 40 | 50 | ||
Size (Inch) | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | ||
DIN | PVC-U | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 55 ℃ |
PVC-C | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 95 ℃ | |
ANSI | PVC-U | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 55 ℃ |
PVC-C | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 95 ℃ | |
JIS | PVC-U | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 55 ℃ |
PVC-C | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 95 ℃ | |
PT | PVC-U | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 55 ℃ |
PVC-C | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 95 ℃ | |
NPT | PVC-U | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 55 ℃ |
PVC-C | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 95 ℃ | |
BSPF | PVC-U | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 55 ℃ |
PVC-C | ֍ | ֍ | ֍ | ֍ | ֍ | ֍ | 5 ℃ - 95 ℃ | |
Operating torque (N.M) | 2.00 | 2.50 | 4.00 | 5.00 | 7.50 | 1.00 | ∕ | |
Working Pressure (psi) | 150 | 150 | 150 | 150 | 150 | 150 | ||
Note: ֍ stands for the standard products @ stands for on request, if any requirements, please double check with Sanking team. N/A stands for not available | ||||||||
4. Dimension (Unit:mm)
SIZE | C | D | L | n-φe | |||
ANSI | JIS | DIN | |||||
1/2" | (15) | 60.5 | 70.0 | 65.0 | 95.0 | 125.0 | 4-15 |
3/4" | (20) | 70.0 | 75.0 | 75.0 | 105.0 | 144.0 | 4-15 |
1" | (25) | 79.2 | 90.0 | 85.0 | 125.0 | 162.0 | 4-19 |
1-1/4" | (32) | 89.0 | 100.0 | 100.0 | 140.0 | 176.5 | 4-19 |
1-1/2" | (40) | 98.0 | 105.0 | 110.0 | 150.0 | 191.0 | 4-19 |
2" | (50) | 121.0 | 120.0 | 125.0 | 165.0 | 213.0 | 4-19 |
5. Application
The CPVC True Union Swing Check Valve is commonly used in chemical industry, light industry, mining and metallurgy, oil field, electronics, pharmacy, brewing, food processing, construction, civil water and sewage, etc., it plays the role of conveying various corrosive media and high-purity media
6. Our Advantage
No MOQ, small Q'ty is acceptable.
Specific design with great technology
Best price
Short delivery

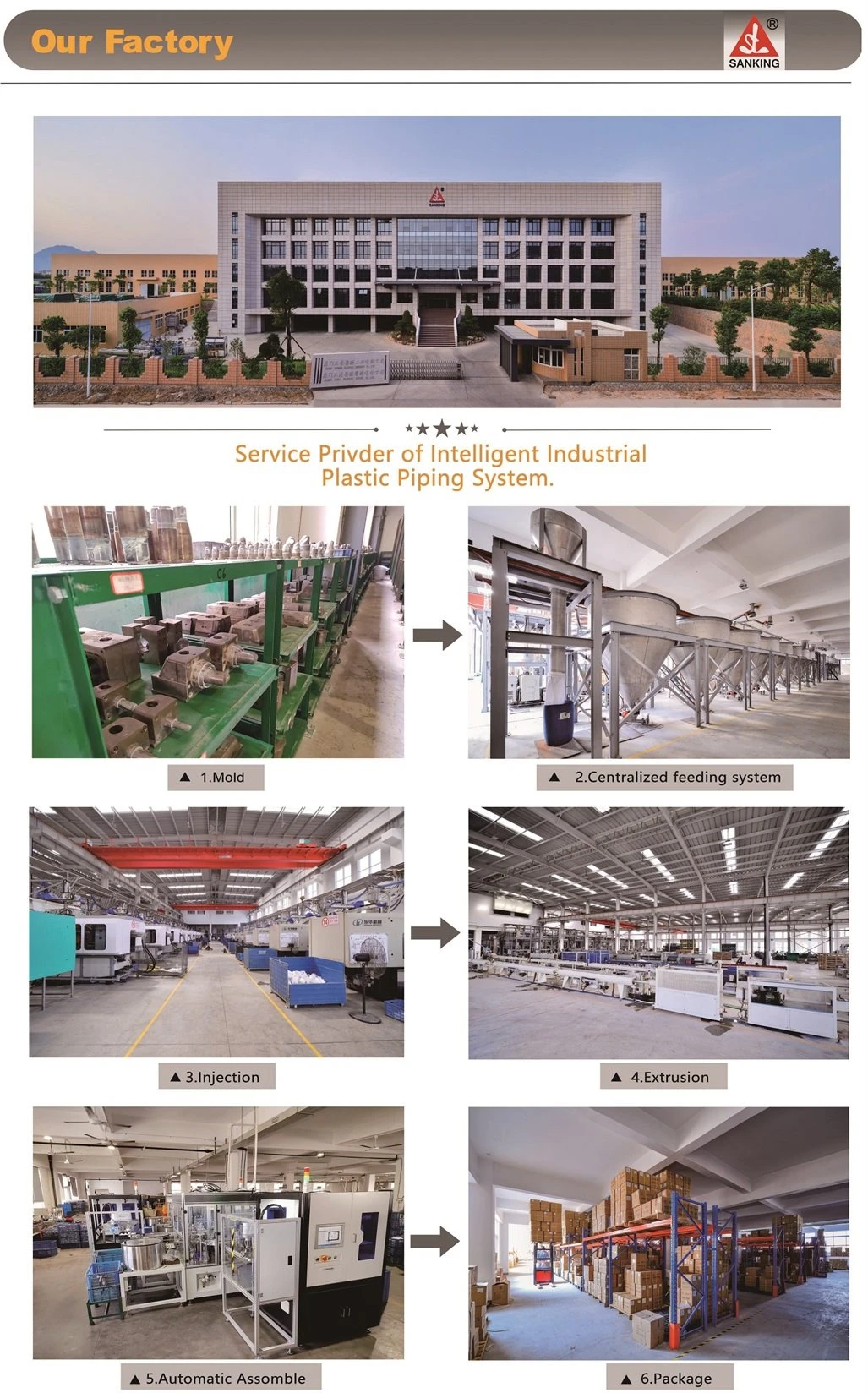

7. Production Process
Ingredients - high-speed mixing - cold mixing - injection of parts - parts inspection - assembly of qualified products - sealing experiment - finished product inspection, packaging, warehousing
8. FAQ
Q1: Can I have a sample order for valve?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Where are the main markets for your products?
A: We hope to make business with companies from all over the world. And for now, our valves and fittings have been exported to especially in North America, South America, South Asia, Europe and Middle East.
Q3: What is your lead time?
A: 2-3 days for the conventional product in stock, otherwise it is 20-30 days after order confirmed. Urgent order can be negotiated.
Q4: How can I check your factory situation while it's difficult for me to come to China?
A: We have photos and videos on our website and face book, it shows every step of the manufacturing.
Q5: How can you guarantee the quality of products?
A: First of all, we have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every valve or fitting we sell is qualified.
Q6: How do you pack?
A: 1.Plastic bags→2.Paper box→3.Cartons→4.Plywood Case（Depends)
