45 degree elbows are vital pipeline connectors. It is used to change the direction of the pipeline. The 45 ° elbow enables the pipeline to achieve turning, and limited pipe fittings create unlimited pipelines. SANKING has two standard UPVC 45 degree elbows: ANSI and DIN. UPVC 45 ° elbow of socket and thread connection type can be provided. Easy to install and simple operation.
2. Dimension (unit:mm)
ANSI(SxS) | |||||||

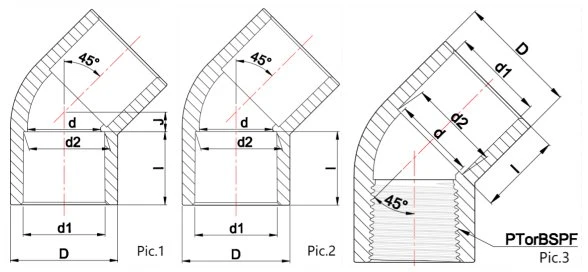

Nominal | Outside Dia | Socket Type | Structural Diameter | Pic.1 | |||
Size | D | d1 | d2 | I | d | J | |
1/2" | 30.00 | 21.54 | 21.23 | 24.00 | 16.00 | 6.50 | |
3/4" | 35.00 | 26.87 | 26.57 | 27.00 | 22.00 | 8.00 | |
1" | 44.00 | 33.65 | 33.27 | 30.00 | 30.00 | 8.00 | |
1-1/4" | 54.00 | 42.42 | 42.04 | 34.00 | 38.00 | 10.00 | |
1-1/2" | 60.00 | 48.56 | 48.11 | 37.00 | 43.00 | 12.00 | |
2" | 73.00 | 60.63 | 60.17 | 41.00 | 54.00 | 16.00 | |
2-1/2" | 88.00 | 73.38 | 72.85 | 46.50 | 67.00 | 18.00 | |
3" | 105.00 | 89.31 | 88.70 | 50.00 | 82.00 | 19.50 | |
4" | 132.00 | 114.76 | 114.10 | 60.00 | 106.00 | 26.00 | |
5" | 162.00 | 141.81 | 141.00 | 77.00 | 133.00 | 35.00 | |
6" | 191.00 | 168.83 | 168.00 | 79.00 | 158.00 | 45.00 | |
8" | 246.00 | 219.84 | 218.70 | 102.00 | 200.00 | 51.00 | |
10"（handmade） | 304.00 | 273.81 | 272.67 | 148.00 | 240.00 | 58.00 | |
12"（handmade） | 360.00 | 324.61 | 323.47 | 168.00 | 290.00 | 64.00 | |
Note: Dimensions for handmade fittings shall per actual ones. | |||||||
DIN(SxS) | |||||||
Nominal | Socket Type | Structural Diameter | Total length | Pic.2 | |||
Size | d1 | d2 | I | D | d | L | |
DN15 | 20.30 | 20.10 | 16.00 | 27.00 | 17.00 | 46.00 | |
DN20 | 25.30 | 25.10 | 19.00 | 33.00 | 23.00 | 56.00 | |
DN25 | 32.30 | 32.10 | 22.00 | 41.00 | 29.00 | 69.00 | |
DN32 | 40.30 | 40.10 | 26.00 | 50.00 | 37.00 | 81.00 | |
DN40 | 50.30 | 50.10 | 32.00 | 61.00 | 47.00 | 96.00 | |
DN50 | 63.30 | 63.10 | 38.00 | 76.50 | 60.00 | 115.00 | |
DN65 | 75.30 | 75.10 | 44.00 | 92.00 | 72.10 | 140.00 | |
DN80 | 90.30 | 90.10 | 51.00 | 110.60 | 87.10 | 162.00 | |
DN100 | 110.40 | 110.10 | 61.00 | 133.00 | 106.10 | 195.00 | |
DN125 | 140.50 | 140.20 | 77.00 | 162.00 | 133.00 | 241.00 | |
DN150 | 160.50 | 160.20 | 86.00 | 186.00 | 154.00 | 273.00 | |
DN200 | 225.70 | 225.30 | 119.00 | 261.00 | 205.00 | 379.00 | |
DN250(handmade) | 250.80 | 250.30 | 148.00 | 290.00 | 239.00 | ||
DN300(handmade) | 316.00 | 315.40 | 168.00 | 364.00 | 304.00 | ||
Note: Dimensions for handmade fittings shall per actual ones. | |||||||
DIN(SxT) | |||||||
Nominal | Socket Type | Structural Diameter | Pic.3 | ||||
Size | d1 | d2 | I | D | d | PT/BSPF | |
DN15 | 20.30 | 20.10 | 16.00 | 27.00 | 17.00 | 14.00 | |
DN20 | 25.30 | 25.10 | 19.00 | 33.00 | 23.00 | 14.00 | |
DN25 | 32.30 | 32.10 | 22.00 | 41.00 | 29.00 | 11.00 | |
DN32 | 40.30 | 40.10 | 26.00 | 50.00 | 37.00 | 11.00 | |
DN40 | 50.30 | 50.10 | 32.00 | 61.00 | 47.00 | 11.00 | |
DN50 | 63.30 | 63.10 | 38.00 | 76.50 | 60.00 | 11.00 | |
