1. Products Introduction

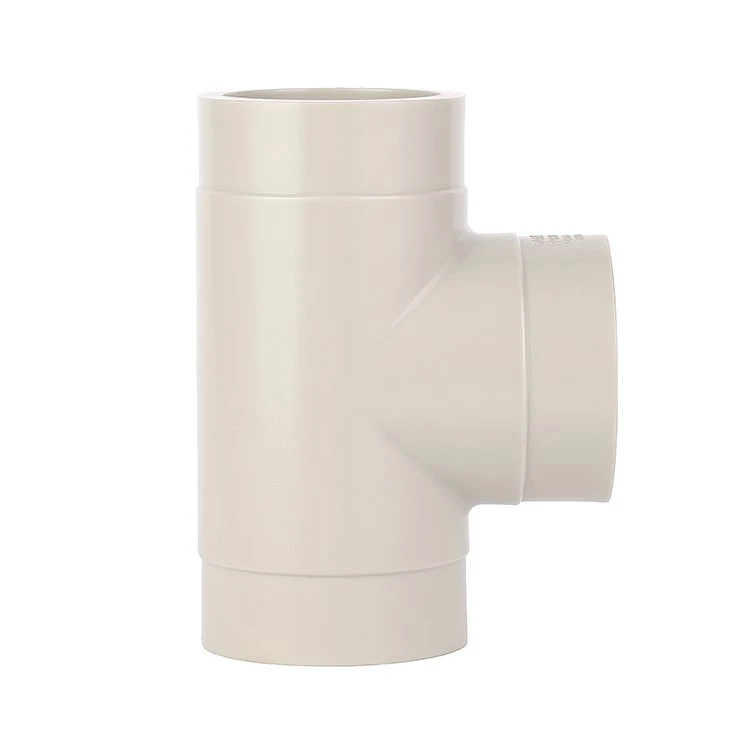

PPH Tee is one of the most common types of fittings used in the piping system. It has 3 way joint, which allow a line to be split into two lines at a 90 degree angle. We provide two different connection type, socket fusion or butt weld. Check your pipe system design, then choose the right one.

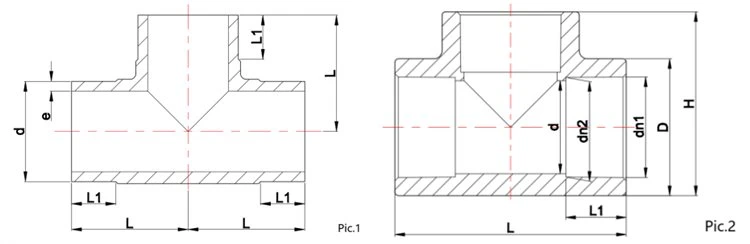

2. Dimension (unit:mm)
DIN (Butt Welding)
Size | d | e | L1 | L | Ref. |
DN15 | 20.0 | 1.9 | 24.0 | 38 | Pic.1 |
DN20 | 25.0 | 2.3 | 26.0 | 42 | |
DN25 | 32.0 | 2.9 | 26.0 | 46 | |
DN32 | 40.0 | 3.7 | 22.0 | 51 | |
DN40 | 50.0 | 4.6 | 22.0 | 58 | |
DN50 | 63.0 | 5.8 | 21.0 | 66 | |
DN65 | 75.0 | 6.8 | 20.0 | 75 | |
DN80 | 90.0 | 8.2 | 20.0 | 90 | |
DN100 | 110.0 | 10 | 25.0 | 110 | |
DN150 | 160.0 | 14.6 | 40.0 | 165 |
DIN (SxSxS) (Socket Fusion)
Size | D | d | dn1 | dn2 | L1 | H | L | Ref. | ||
min | max | min | max | |||||||
DN15 | 26.5 | 17.05 | 19.0 | 19.5 | 18.8 | 19.3 | 15.0 | 39.25 | 52.0 | Pic.2 |
DN20 | 33.0 | 21.8 | 23.8 | 24.4 | 23.5 | 24.1 | 16.5 | 46.5 | 60.0 | |
DN25 | 42.2 | 28.7 | 30.7 | 31.3 | 30.4 | 31 | 18.6 | 56.7 | 71.2 | |
DN32 | 53.0 | 36.6 | 38.7 | 39.3 | 38.3 | 38.9 | 21.0 | 68.5 | 84.0 | |
DN40 | 66.0 | 46.6 | 48.7 | 49.3 | 48.3 | 48.9 | 24.0 | 83 | 100.0 | |
DN50 | 83.5 | 59.4 | 61.6 | 62.2 | 61.1 | 61.7 | 28.0 | 102.25 | 121.0 | |
DN65 | 95.0 | 70.3 | 73.2 | 74 | 71.9 | 72.7 | 31.5 | 117.5 | 140.0 | |
DN80 | 113.5 | 84.9 | 87.8 | 88.8 | 86.4 | 87.4 | 36.0 | 138.75 | 164.0 | |
DN100 | 138.5 | 104.3 | 107.3 | 108.5 | 105.8 | 106.8 | 42.0 | 167.25 | 196.0 | |
3. Our Advantage
1) 45 years plastic valves, fittings made experience factory direct selling(quality is promised, price is the most honest)
2) Friendly trademanager online service.
3) Fast lead time. Welcome to visit our factory.
4. Package & Shipping
Packaging: 1piece into inner box, several boxes into master carton.
Delivery: as per the most convenient or cost effective for you.

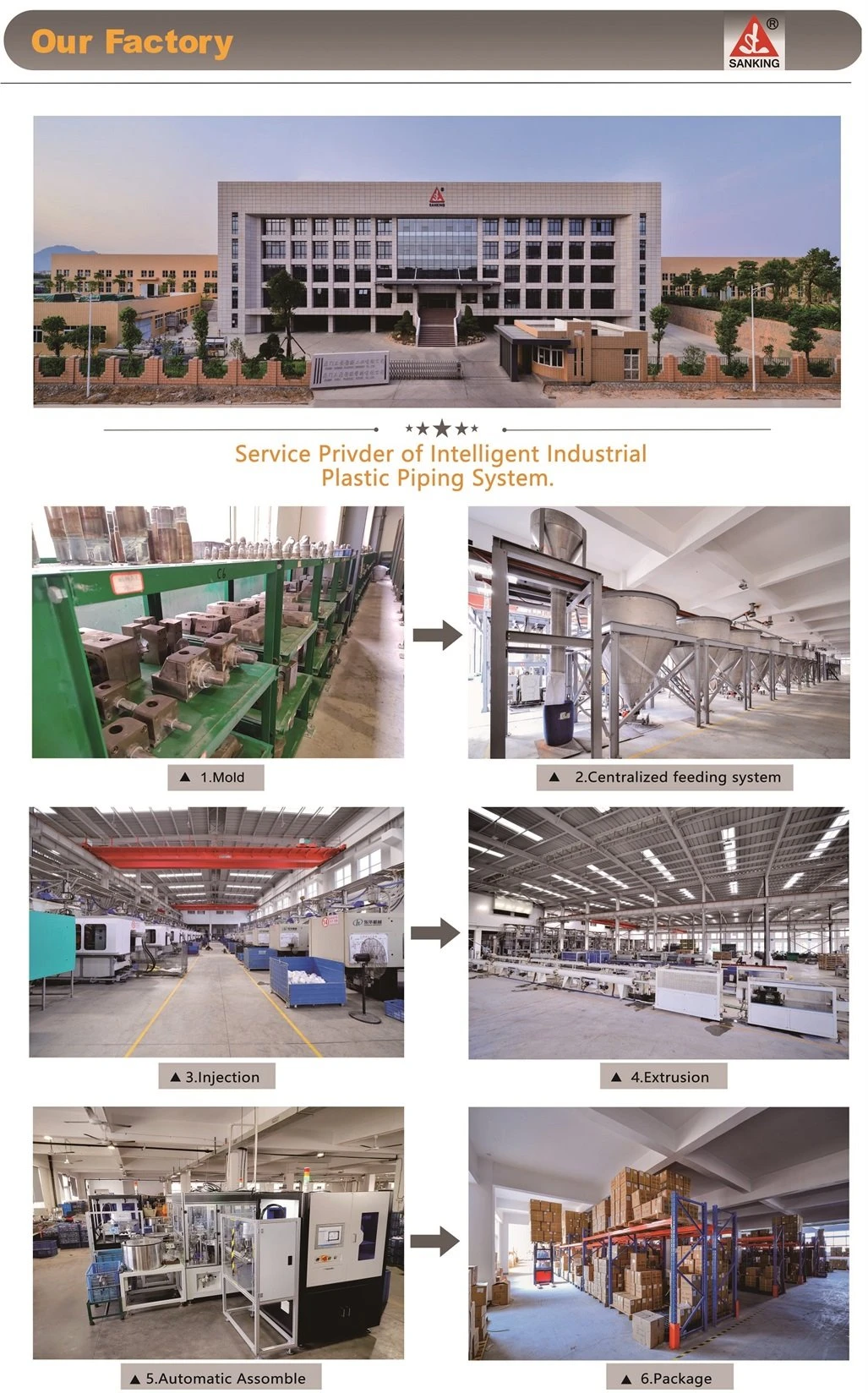

5. Production Process
6. Company Profile
SANKING has specialized in its core field of PVC, CPVC, PPH and PVDF Industrial Piping Systems since 1976. The facility is qualified by ISO 9001:2015, most of our products obtained the CE safety certification, TSG certification, NSF certification and various invent patents. At our most fundamental level, our goal is the continued evolution of the SANKING brand and delivering the results of a sustained growth to our distribution channels, supply and service partners, employees and investors. Welcome to be our distributor or equipment user, we will definitely provide you with more value-added services.
