PVC True Union Diaphragm Valve

Xiamen Sanideng Plastics Industry Co., Ltd. is one of the most reliable manufacturers and suppliers of pvc true union diaphragm valve in China. With abundant experience, we warmly welcome you to wholesale premium pvc true union diaphragm valve for sale here from our factory. Quality products and reasonable price are available.

1. Products Introduction

PVC True Union Diaphragm Valve is a special form of shut-off valve. It designed for process systems that require precision flow and/or develop internal fluid pressure or back pressure. The diaphragm valve is controlled by an elastic diaphragm and a herringbone flow channel. The diaphragm is connected to the compression mechanism by bolts, and then the compression member is operated by the valve stem to move up and down. When the compression mechanism rises, the diaphragm lifts up, resulting in a passage, when the compression mechanism descends, the diaphragm is pressed on the valve body, resulting in a closed circuit. Sanking's diaphragm is made from resistant thermoplastic material: EPDM, FPM or PTFE which is high-grade, stretching and creep materials, and with one-time molding, the size of the diaphragm is well controlled, ensuring the tightness and service life of the product.

Sanking's PVC True Union Diaphragm valve allow easy repair or in line valve replacement due to the union ends which come manufactured with. The true union ball valve can be used as a union and a valve at the same time. Because of the unions' design, when the pipeline system needs to be repaired or maintained, this can be taken out of line for ease of service without disassembling an entire system, minimal impact on the whole system. We provide the size from ½" through 4" diameter. Connection styles are either socket or threaded. EPDM or VITON on Seal are available. Besides PVC, we also provide CPVC, PPH, PVDF.

The PVC true union Diaphragm valve is especially suitable for ultra-pure medium or viscous fluids with seriously pollution, corrosive or inert medium. When combined with control equipment, diaphragm valves can replace other traditional control systems, especially for solid and easily polluted inert media.

2. Main Features

a. The herringbone flow channel is suitable for media containing particles and is not easy to be stuck.

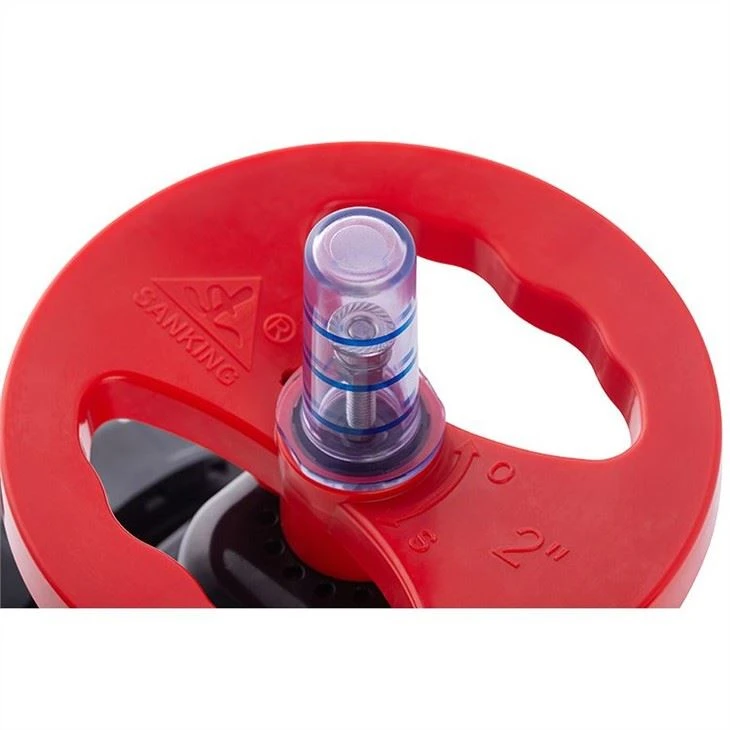

b. The wheel-shaped handle with multiple turns, can more accurately adjust the valve switch ratio to achieve better flow control

c. Excellent seal – The diaphragm is made from resistant thermoplastic material: EPDM, FPM or PTFE which is high-grade, stretching and creep materials. Double-layer diaphragms can be chose when used for harsh working conditions with chemically to improve the chemical resistance and life of the valve.

d. Long Service Lifetime – Made by nano molded material with UV, weather resistance

e. 100% Leak free inspection

f. Working Pressure- PN10

g. CE certificate

3. Parameter

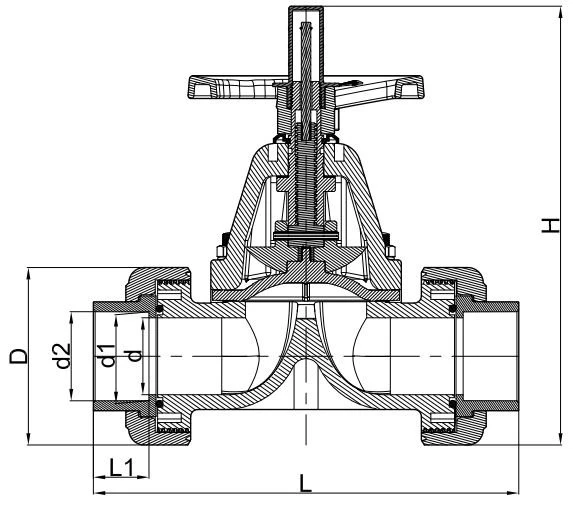

4. Dimension (Unit:mm)

5. Application

The PVC true union Diaphragm valves are mainly used in biopharmaceutical, food, industrial water treatment, chemical, electroplating, Semiconductor wafer, ternary lithium battery and other industries.

6. Our advantage

45 years experience

The factory have 45years history,can do all kinds of thermoplastic valves and fittings

Quality guarantee

The factory have test department to guarantee high quality.

Timely service

Waiting for your contact online.

7. Production Process

8. Company Profile

9. FAQ

Q1: How much pressure can a PVC true union ball valve hold?

A: 150psi.

Q2: Can the handle of the PVC true union ball valve be replaced?

A: Yes, it can be replaced easily. And this handle can be used as a tool for disassembly, assembly or adjustment of the support of the ball seat carrier.

Q3: How long is the lifetime of Sanking’s PVC ball valve

A: It varies according to different working conditions, if the conveyed liquid is pure water at 25 degrees with a pressure of 3 kgs, indoor application, the service life can exceed 50 years. But if it is 98% concentrated sulfuric acid at 25 degrees with a pressure of 3 kgs, indoor application, the service life is often about 3 years.

Q4: What kind of valve should be used for 30% nitric acid at 70 degree with a pressure of 3KGS?

A: It is recommended to use CPVC valves with black VITON seal.

Q5: Are there any more economical suggestions for the pressureless delivery of copper sulfate solution at room temperature?

A: You can use PPH valve with EPDM gasket, pay attention to the crystallization problem.

Q6: Are your PVC true union ball valves reliable?

A: Yes, because we are using the nano molded material to ensure the reliability. We are the first company in China to use CNC to process its core (ball sphere) to make sure there is no leakage and 100% inspection before package.

Q7: Can we use the true union ball valve to control flow?

A: Yes, according to the different opening angles, the flow is adjusted non-linearly. If linear adjustment is required, the linear flow sphere needs to be replaced.

Q8: Why choose Sanking?

A: Since 1976, Sanking has engaged in the manufacturing the valve, fittings and pipes over 40 years experience.

Strictly Quality Control, with CE, ROHS, NSF, ISO9000

Sanking provide cost effective products.

Innovation design, reliable products. 100% inspection.

Stock available, short delivery time.

Professional team for service.
